This is a large Training File on all the specifics of an Individual Camera interface. It has History, Settings, Package choice, and more. Please search the following list for specifics about each part using Ctrl + F or scroll down to the correct header.

1.0 Info

2.0 General

3.0 Quality

4.0 Recording

5.0 Analytics

6.0 Location

7.0 Events

8.0 Logs

9.0 Plan

10.0 Delete

11.0 Trouble Shooting

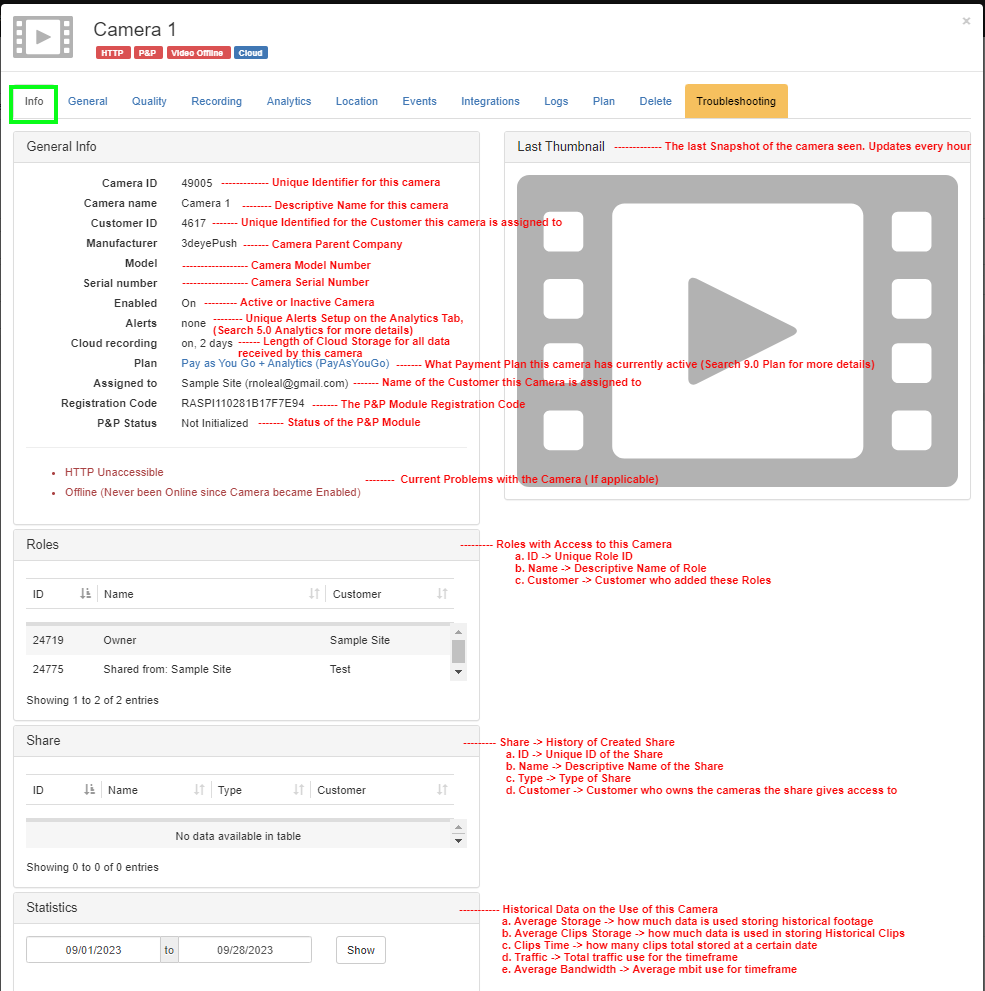

1.0 INFO

This tab has all the basic information about the camera. None of this is changeable, it is a one-stop page for information about the camera. it includes:

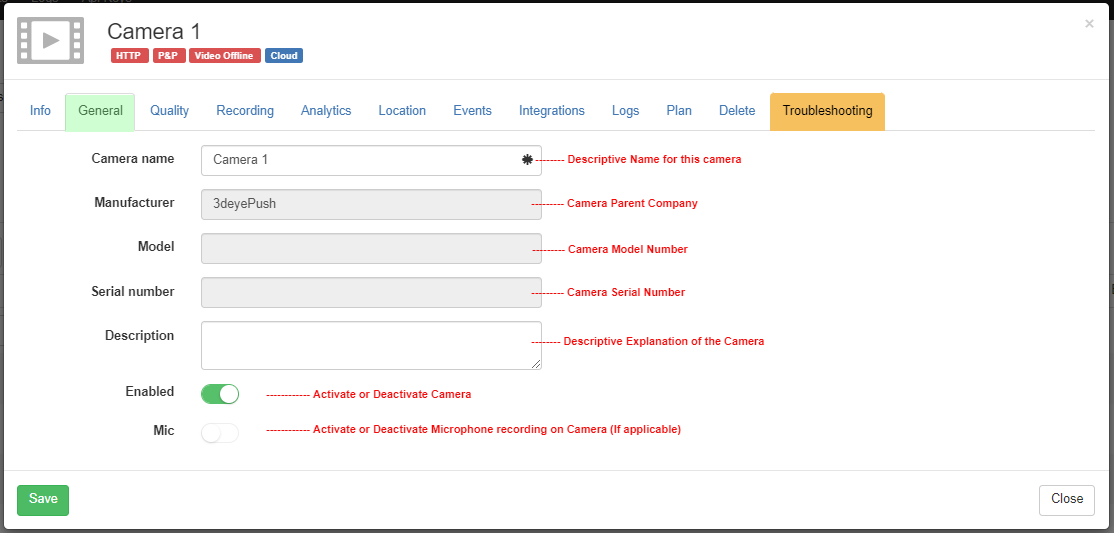

2.0 GENERAL

The General Tab also has basic Information with a couple of Modifiable Sectors

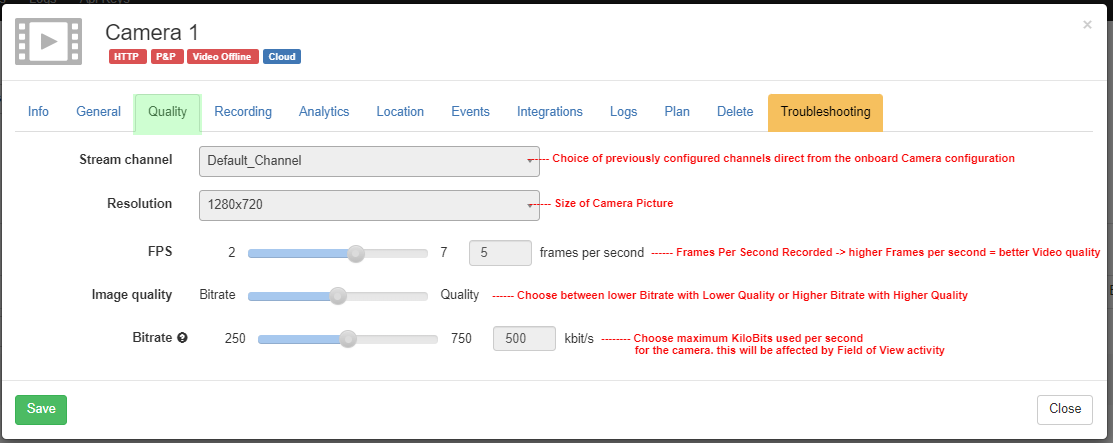

3.0 QUALITY

Quality Settings are your primary Settings to affect your Data Use. Each choice is a balance between Quality and Data Cost. Generally the higher the Quality, the more Data per second used, and the lower the Quality, the less Data transmitted per second.

Here is an excellent calculator for a good approximation. This is done in Megabites per second, 8 Bits in a Byte

The Following are the settings that can be modified directly from the Tab

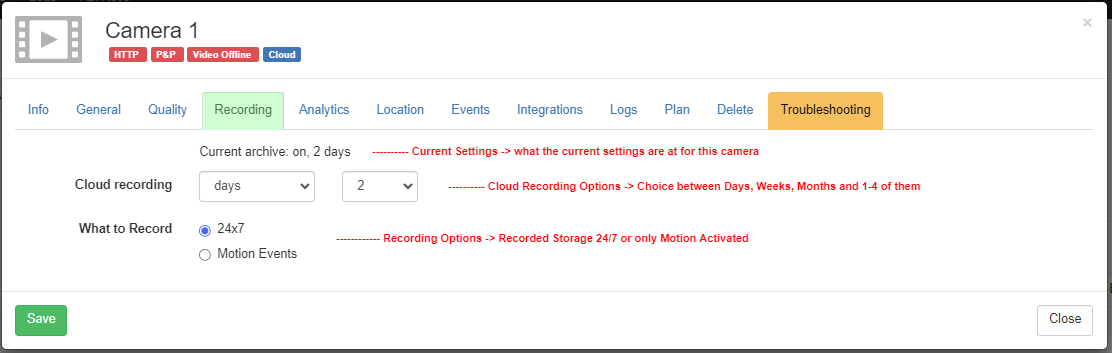

4.0 RECORDING

This Tab configures the Recorded Storage Settings. The Camera has to be enabled and Online to be able to Edit

5.0 ANALYTICS

Analytics is one of the most important and most value-building areas of camera configuration. As such it has its own special training section. Search for analytics in your knowledge base for more information.

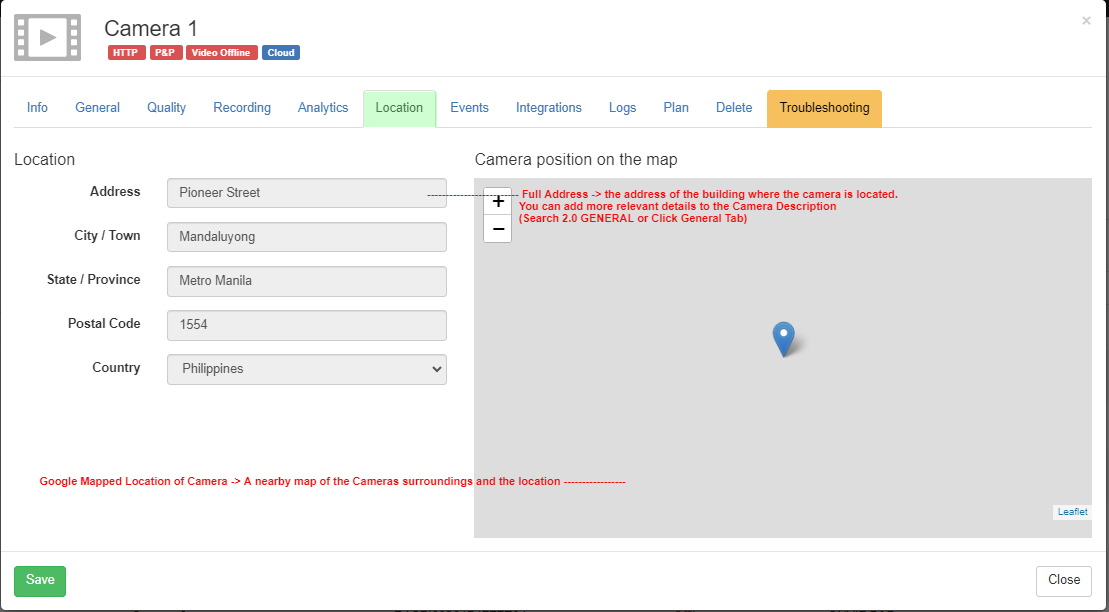

6.0 LOCATION

This is a quick snapshot of where this Camera is located. The location is taken originally from the Customer the camera is registered to. You can edit this information on this Location Tab as needed.

Setting a correct location for every camera is important if the user plans on using the Maps feature in the video portal or time-lapse will be recorded from this camera. Location is used to calculate sunrise and sunset times to establish times when to start and stop image capture for long term time-lapse.

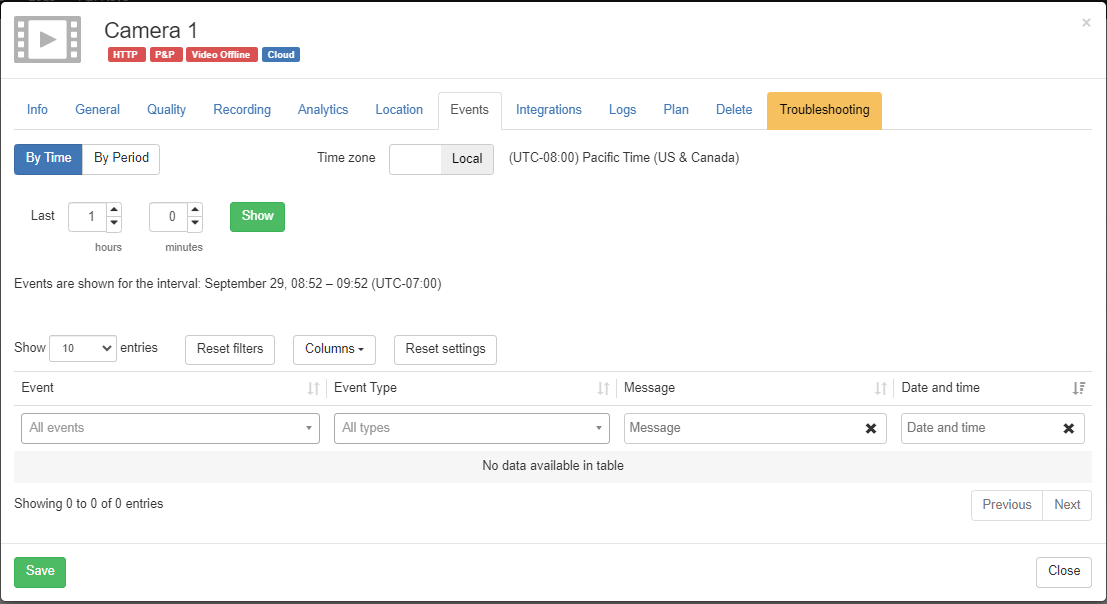

7.0 EVENTS

Events are Active Recorded events setup using Advanced Analytics. They can have multiple different examples like Motion, Human, Vehicle, Directional Motion, etc. The Events tab will allow you to quickly search for events based on Time, or Period.

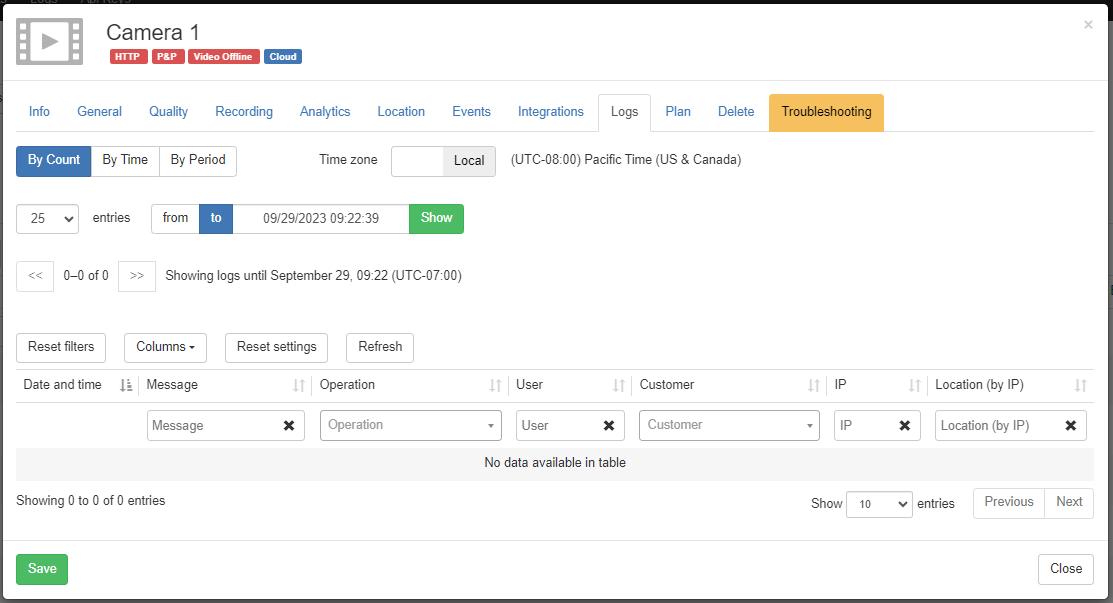

8.0 LOGS

This is used to track any changes made to the camera settings themselves

1. Show Logs by Count -> Shows a certain number of logs in reverse on the specific day chosen
2. Show Logs by Time ->  Shows All the Logs in the Last Number of hours for this Login, Current maximum 24 hours
3. Show Logs by Period -> Shows all the logs between a Start Date  and an End Date
4. Timezone -> Choose for reporting if it uses Local Computer time or UTC Standard Time
5. Log Settings -> Particular Settings for each Log option
   • Count -> Choose how many Logs
   • Count -> Choose What Day you want to see ( maximum 1 year in history)
   • Time -> Choose How many hours and minutes previous you want to see total ( maximum 24 hours)
   • Period -> Choose Starting Day (maximum 1 year earlier start date)
   • Period -> Choose Ending Day (maximum 30 days total)
6. Reset Filters -> Logs can be filtered by Message, Operation, User, Customer, IP, and Location. This resets entered filters.
7. Columns ->Choose Columns to be Seen in the logs
   • Date and Time -> See Below
   • Message -> See Below
   • Operation -> See Below
   • User -> See Below
   • Customer -> See Below
   • Customer ID -> Unique Identifier for the customer this camera is assigned to
   • IP -> See Below
   • Location (By IP) -> See Below
   • User Agent -> More in-depth information on the device used
8. Reset Settings -> Resets Column Settings to Default
9. Refresh -> Refresh the Log to see any changes
10. Date and Time -> The date and time the changes were logged
11. Message -> Sentence explaining what the log is about
12. Operation -> The name of the Operation
13. User Changes -> The User who changed the account
14. Customer -> The Customer Account
15. IP -> Logged IP of User who created the Log addition
16. Location (by IP) -> Estimated location of above IP (if possible)

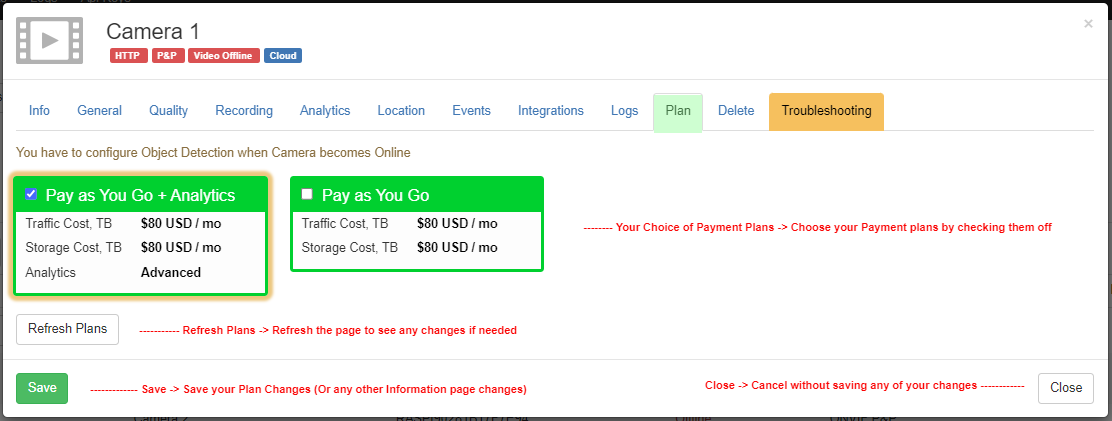

9.0 PLAN

This is used to modify the payment plan for each individual camera.

There are a multitude and you can choose multiple, depending on your needs to add features to each camera

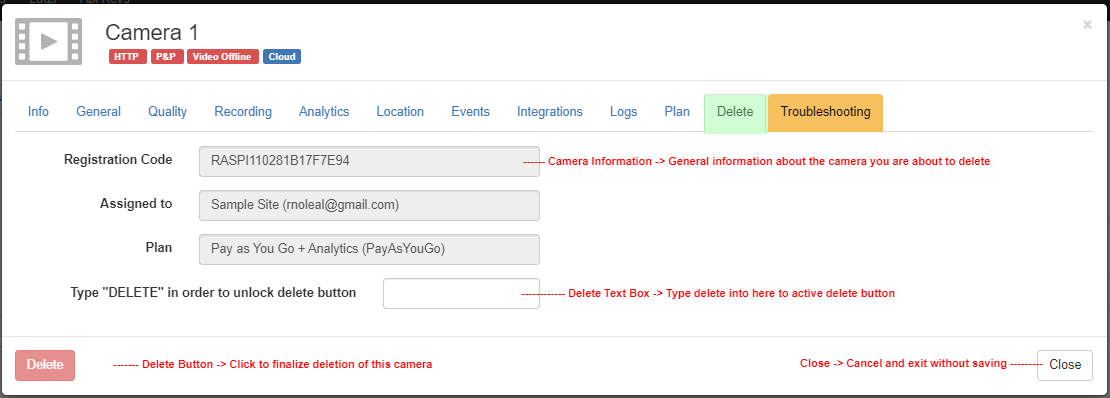

10.0 DELETE

Delete will delete a camera entirely from the Integrator Account. You will then have to re-register the camera and follow all required steps to re-add it to any customer.

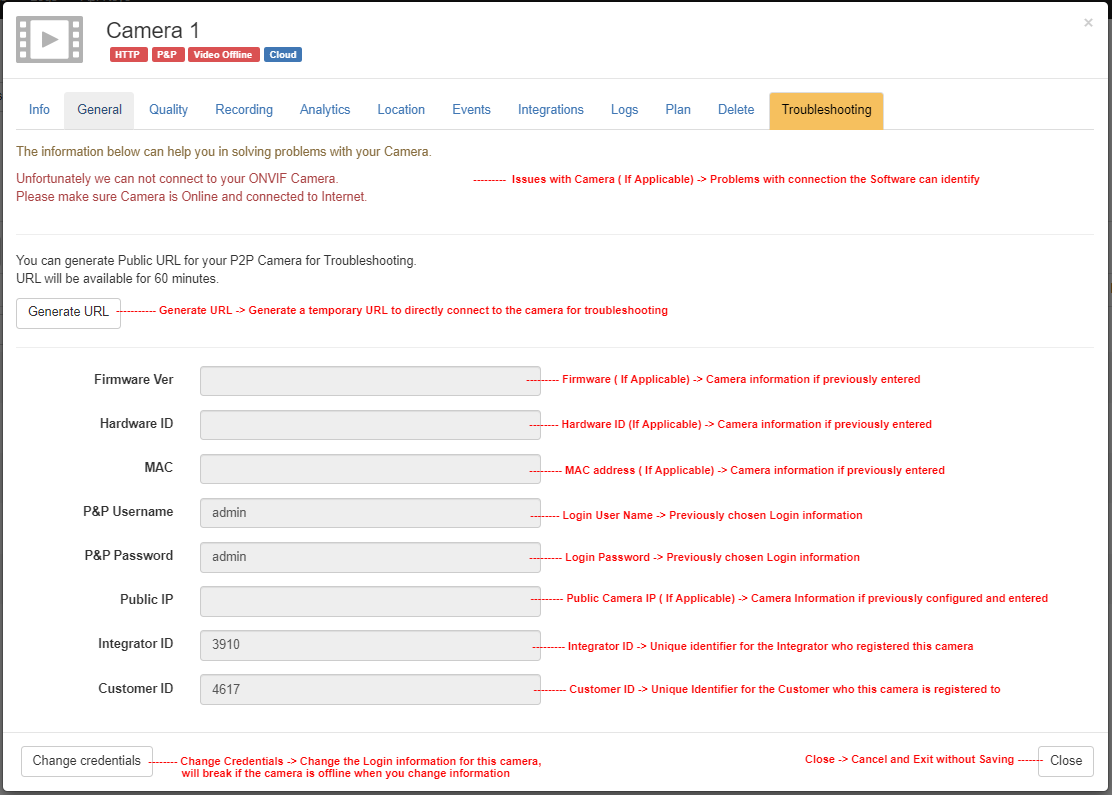

11.0 TROUBLESHOOTING

This Tab is used for helping diagnose and fix problems with cameras. You can fix the connection, quality, analytics, field of view, field of activation, and more.

Modifying settings on the camera can make your camera and connection not work. Ensure proper care is taken when making changes to camera settings
