Customer Branding - Explanation of the Branding Interface

Customer Branding - Explanation of the Branding Interface



There are multiple areas in the VMS platform that a Customer or Integrator can customize with their branding.

1.0 General

2.0 Admin Portal

3.0 Video Portal

4.0 Video Portal Themes

5.0 Letter

6.0 Shared Page

7.0 Alarm Station

8.0 IFrame domains

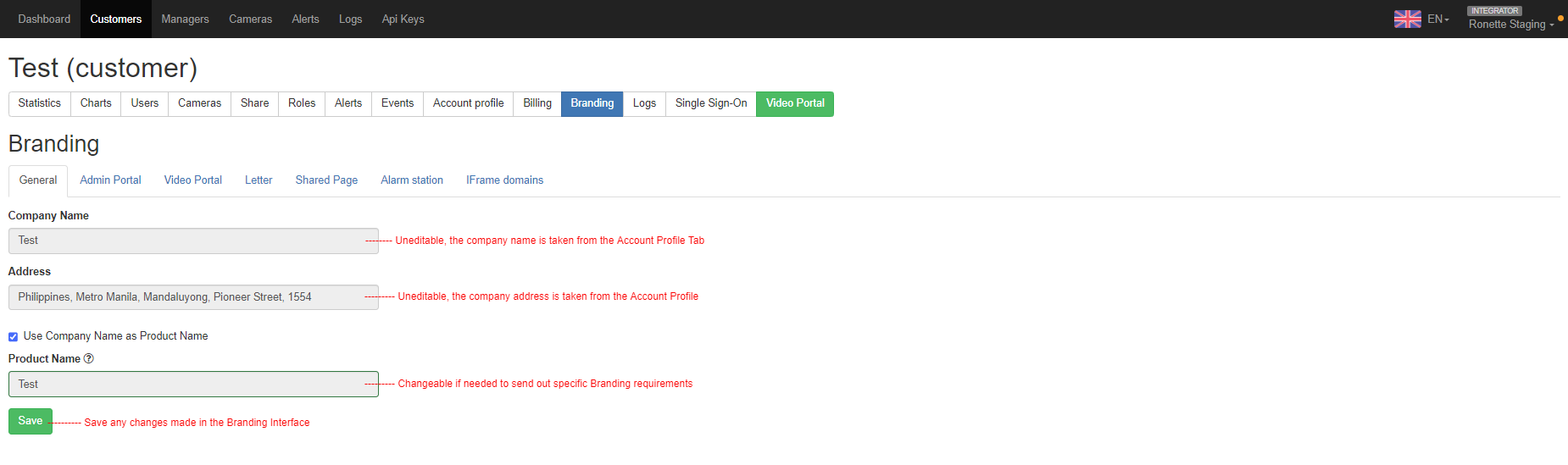

1.0 GENERAL

This is basic information about the Company that will help you start to build the Branding for the Customer

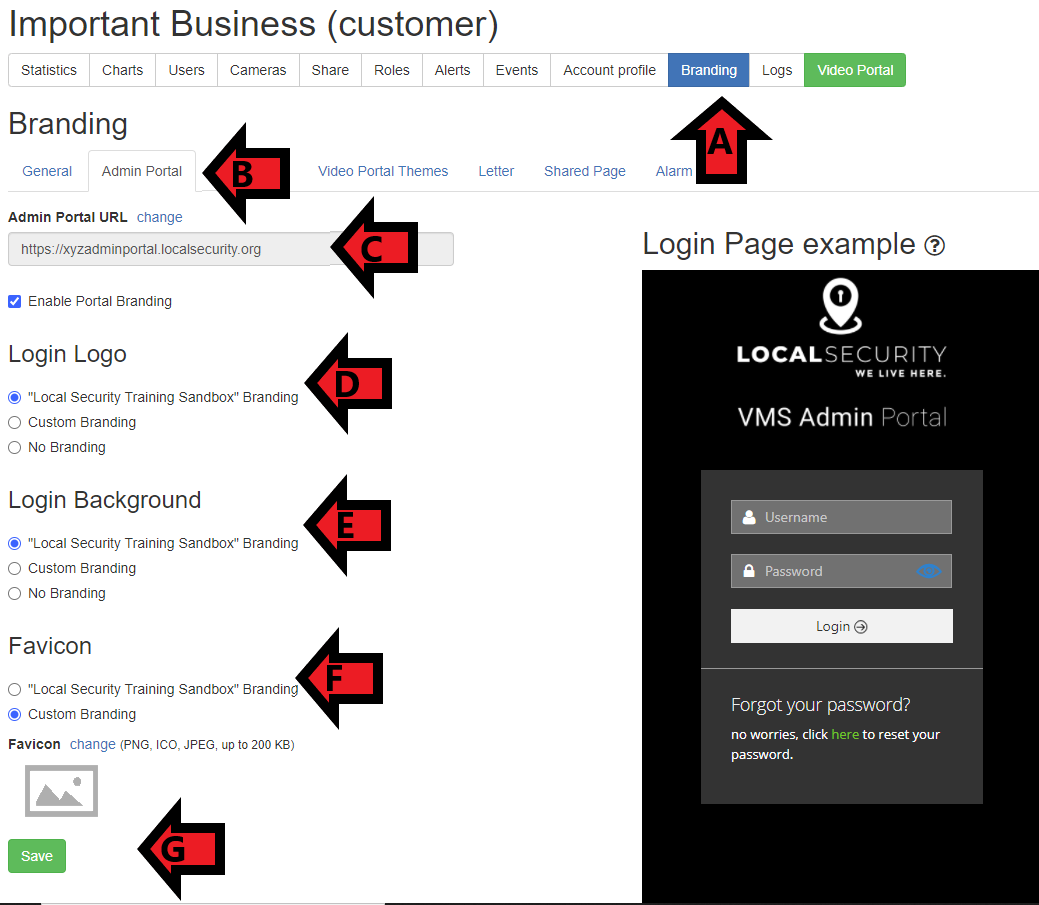

2.0 ADMIN PORTAL

The Admin Portal Is what customers see when they go to www.vmsadmin.localsecurity.org , but Branded to customer or company requirements

  1. Branding Interface
  2. Video Portal Tab
  3. Admin Portal URL -> The Custom Domain name for the Customer or Company
  4. Login Logo -> The Logo the customer sees when they go to the above link
  5. Login Background -> The Background of the Admin Portal Login Page
  6. Favicon -> the mini logo that represents your login page on a saved bookmark or similar locations
  7. Save -> Save any changes made to the Admin Portal Branding

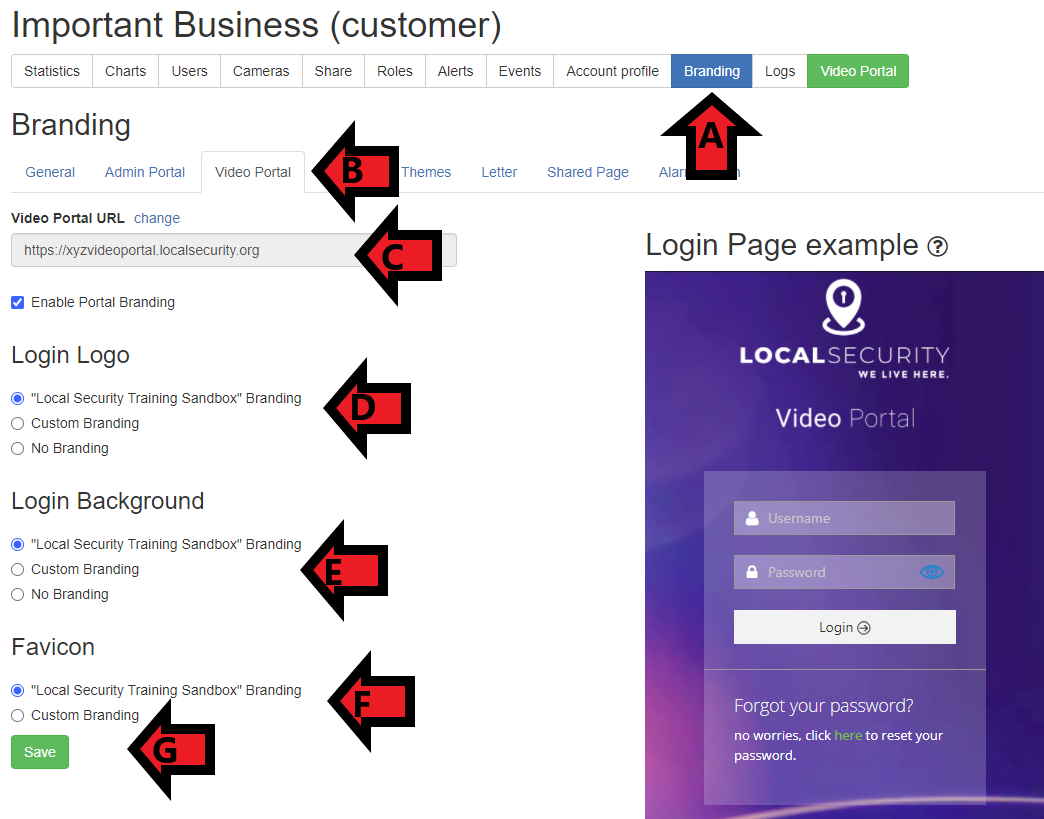

3.0 VIDEO PORTAL

The Video Portal is the customer-facing Portal where they can log in and view their cameras. It has all the features inside it like events, multi-camera view, etc. This can be branded to your customized Domain and logos. Similar to what you see at vms.localsecurity.org

  1. Branding Interface
  2. Video Portal Tab
  3. Video Portal URL -> The Custom Domain name for the Customer or Company
  4. Login Logo -> The Logo the customer sees when they go to the above link
  5. Login Background -> The Background of the Admin Portal Login Page
  6. Favicon -> the mini logo that represents your login page on a saved bookmark or similar locations
  7. Save -> Save any changes made to the Video Portal Branding

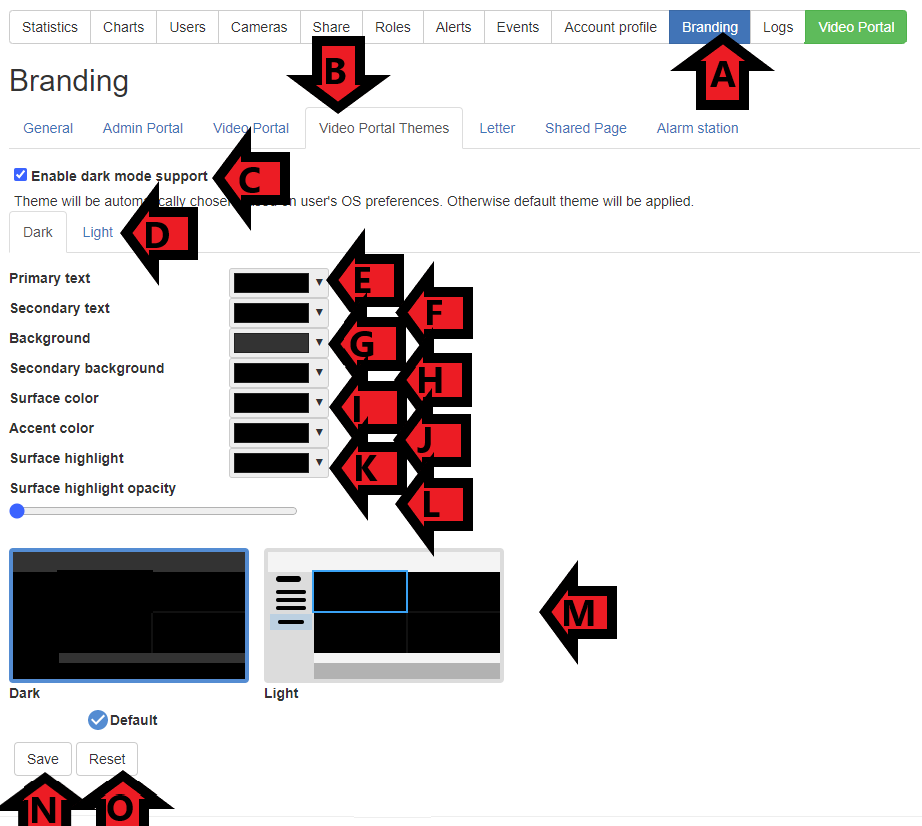

4.0 VIDEO PORTAL THEMES
The Video Portal Themes page is used to determine the coloring of the Video Portal. You can choose a single more or Dark/Light mode and change all the relevant colorings to any HexaDecimal Color Code.

You can use the previews on the Themes Tab for a quick look at the expected output, or log in to the Video Portal

  1. Branding Interface
  2. Video Portal Theme Tab
  3. Enable Dark More Support ->  Activate or deactivate the ability to switch between light and dark more
  4. Dark/Light -> Choose between editing Dark Theme and Light Theme
  5. Primary Text -> The text in the menu(s)
  6. Secondary Text -> The menu title(s)
  7. Background -> The top header color and  other background areas
  8. Secondary Background -> A second background area to create color differentiation
  9. Surface Color -> The background of the menu(s)
  10. Accent Color -> The color of the frame of the selected video stream
  11. Surface Highlight -> The Color of the Frame of the selected menu option
  12. Surface Highlight Opacity -> The see-through ability of the surface highlight
  13. Previews ->  A quick look at the changes that are made to the theme
  14. Save -> Save any changes made
  15. Reset -> Reset to default colors

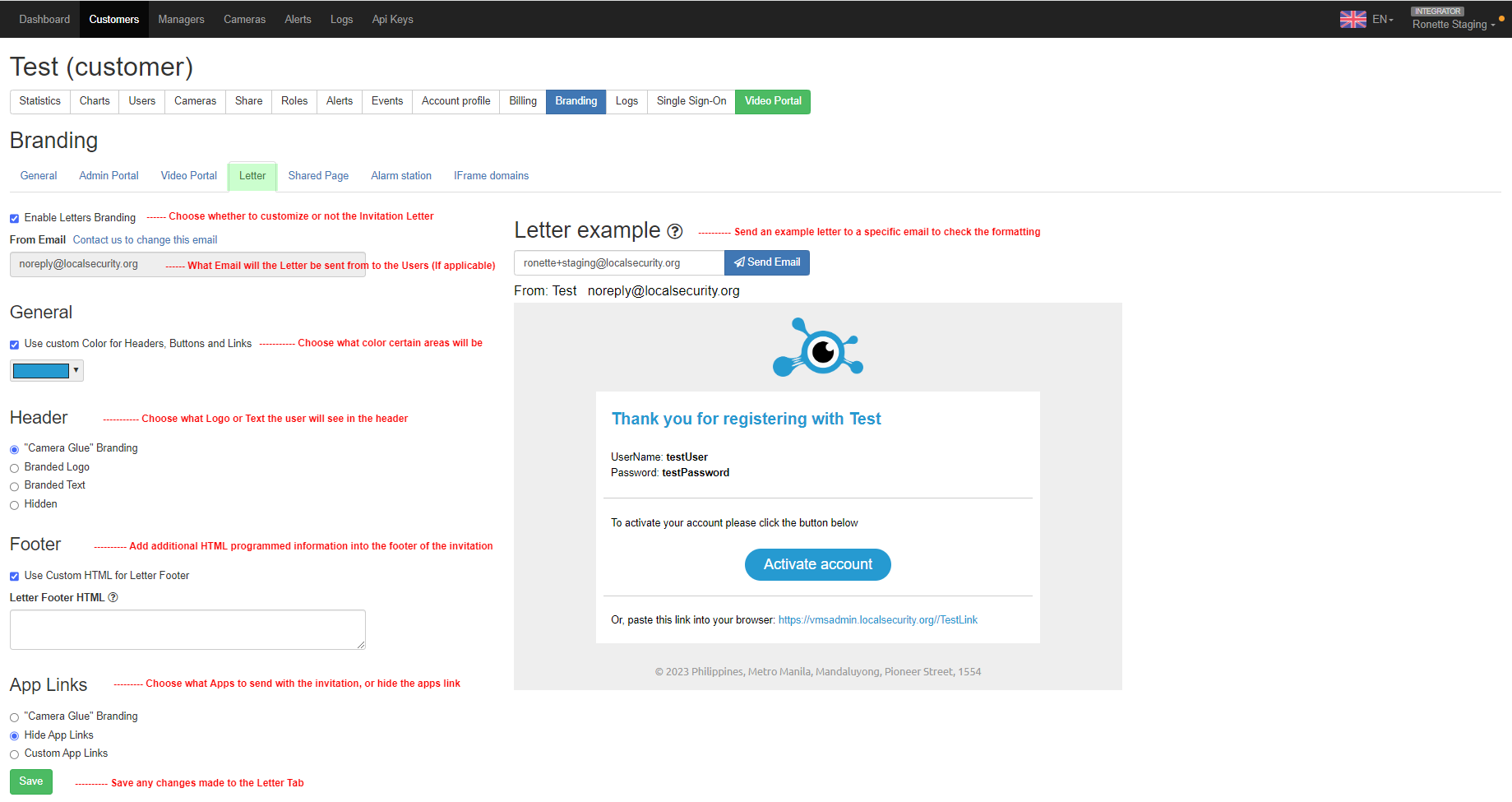

5.0 LETTER

This is the invitation letter sent out to customers when a User is created ( Admin or Guard) to invite them onto the platform.

You can use the preview on the Letters Tab for a quick look at the expected output, or send an email to a specific address

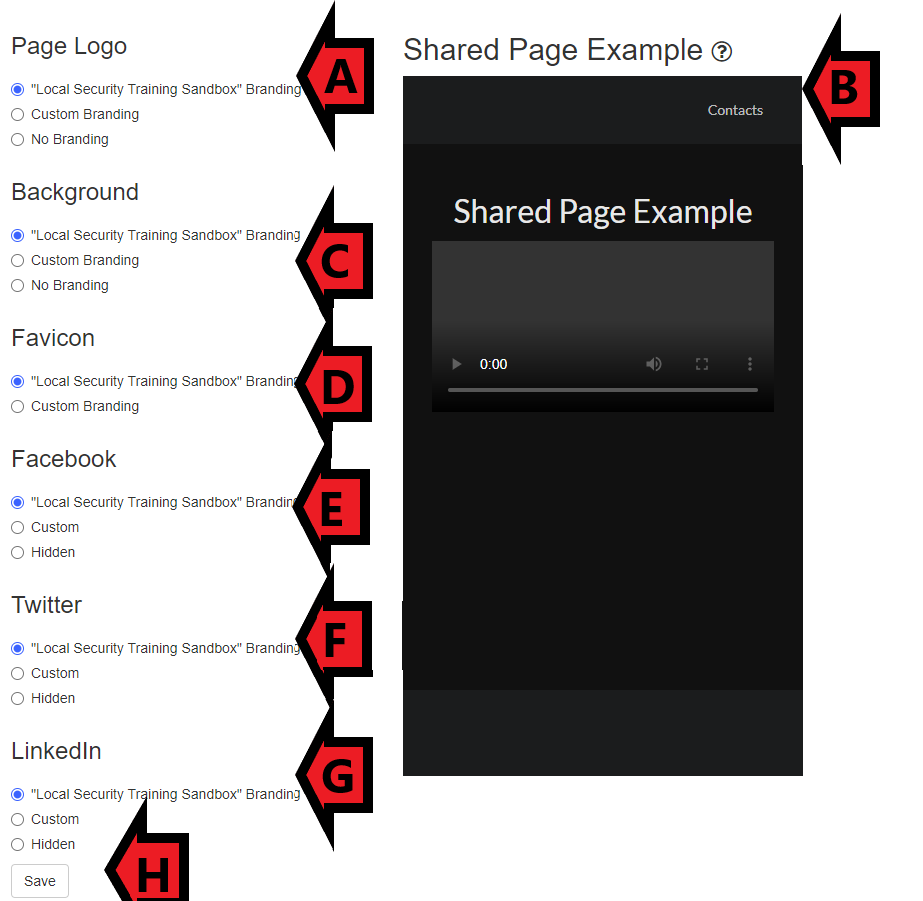

6.0 SHARED PAGE

This is the page people are sent or the Video people see when you create a shared link or a widget link.

You can use the preview on the Shared Tab to get a quick idea of what it would look like, or create a shared link and enter it.



  1. Page Logo -> Logo on the Shared Page of your Business
  2. Example Preview ->  A quick look at the changes that are made to the Share Page
  3. Background -> The background behind the video
  4. Favicon -> the icon that loads at the beginning of the video
  5.  Facebook -> Connect in Contacts your Company Facebook
  6. Twitter -> Connect in Contacts your Company Twitter
  7. Linkedin -> Connect in Contacts your Company LinkedIn
  8. Save -> Save any changes made to the Shared Branding




7.0 ALARM STATION

This is the Login Page for the Guard Active Cameras portal.

You can use the preview on the Alarm Station Tab to get a quick idea of what it would look like, or navigate to vmsalarm.localsecurity.org to see live



  1. Branding Interface
  2. Alarm Station Tab
  3. Alarm Station URL -> Change the URL for Customers to login into the video portal
  4. Enable Portal Branding -> Enable or disable the ability to make modifications to the Alarm Station
  5. Page Logo -> Logo of your business on the Login Page of the Video Portal
  6. Background -> The background behind the video
  7. Favicon -> the icon that loads at the beginning of the video
  8. Save -> Save any changes made to the Alarm Station Branding

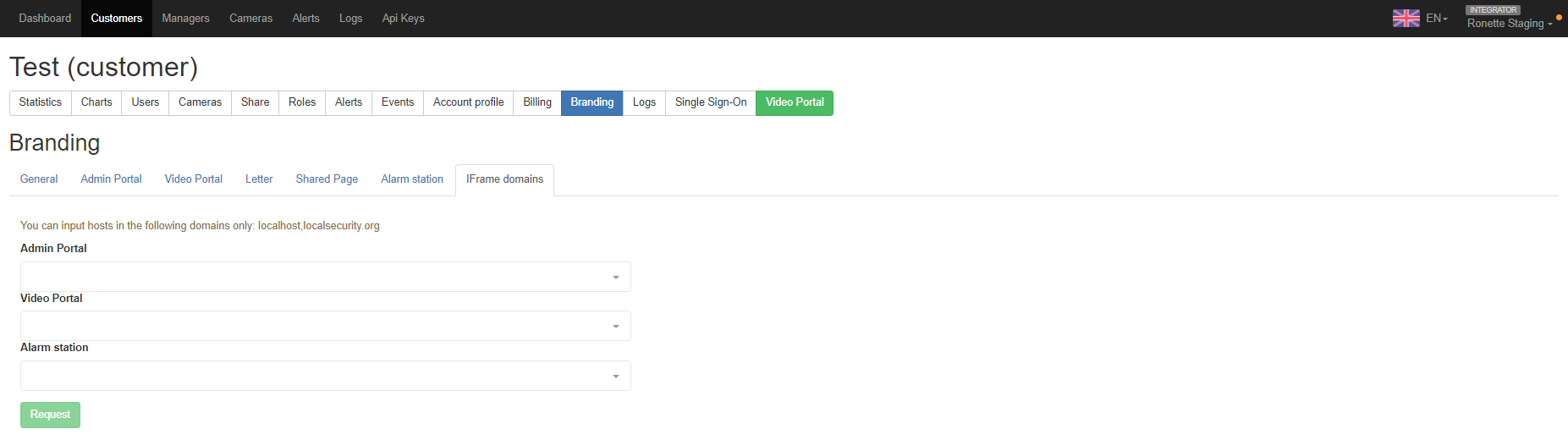

8.0 IFrame domains

​
